vSphere ML Accelerator Spectrum Deep Dive for Distributed Training – Multi-GPU

May 12, 2023 by frankdenneman

The first part of the series reviewed the capabilities of the vSphere platform to assign fractional and full GPU to workloads. This part zooms in on the multi-GPU capabilities of the platform. Let’s review the full spectrum of ML accelerators that vSphere offers today.

In vSphere 8.0 Update 1, an ESXi host can assign up to 64 (dynamic) direct path I/O (passthru) full GPU devices to a single VM. In the case of NVIDIA vGPU technology, vSphere supports up to 8 full vGPU devices per ESXi host. All of these GPU devices can be assigned to a single VM.

Multi-GPU technology allows the data science team to present as many GPU resources to the training job as possible. When do you need multi-GPU? Let’s look at the user requirements. A data science team’s goal is to create a neural network model that provides the highest level of accuracy (Performance in data science terminology). There are multiple ways to achieve accuracy. One is by processing vast amounts of data. You can push monstrous amounts of data through a (smaller) model, and at one point, the model reaches a certain level of acceptable accuracy (convergence). Another method is to increase the sample (data) efficiency. Do more with less, but if you want to use data more efficiently, you must increase the model size. A larger model can use more complex functions to “describe” the data. In either scenario, you need to increase the compute resources if you push extreme amounts of data or push your datasets through larger models. In essence, Machine Learning scale is a triangle of three factors: data size, model size, and the available compute size.

The most popular method of training a neural network is stochastic gradient descent (SGD). Oversimplified, it feeds examples into the network and starts with an initial guess. It trains the network by adjusting its “guesses” gradually. The neural network measures how “wrong” or “right” the guess is and, based on this, calculates a loss. Based on this loss, it adjusts the network’s parameters (weights and biases) and feeds a new set of examples. It repeats this cycle and refines the network until it’s accurate enough.

During the training cycle, the neural network processes all the examples in a dataset. This cycle is called an epoch. Typically a complete dataset cannot fit onto the GPU memory. Therefore data scientist splits up the entire dataset into smaller batch sets. The number of training examples in a single batch defines a batch size.

An iteration is a complete pass of a batch, sometimes called a step. The number of iterations is how many batches are needed to complete a single epoch. For example, the Imagenet-1K dataset contains 1.28 million images. Well-recommended batch size is 32 images. It will take 1.280.000 / 32 = 40.000 iterations to complete a single epoch of the dataset. Now how fast an epoch completes depends on multiple factors. One crucial factor is data loading, transferring the data from storage into the ESXi host and GPU memory. The other significant latency factor is the communication of gradients to update the parameters after each iteration in distributed training. A training run typically invokes multiple epochs.

The model size, typically expressed in the parameter count, is interesting, especially today, where everyone is captivated by Large Language Models (LLMs). Where the AI/ML story mainly revolved around vision AI until a year ago, many organizations are keen to start with LLMs. The chart below shows the growth of parameters of image classification (orange line) and Natural Language Processing (blue line) in state-of-the-art (SOTA) neural network architectures. Although GPT-4 has been released, Microsoft hasn’t announced its parameter count yet, although many indicate that it’s six times larger than GPT-3. (1 Trillion parameters).

Why is parameter count so important? We have to look more closely at the training sequence. The article “Training vs. Inference – memory consumption by neural network” explores the memory consumption of parameters, network architecture, and data sets in detail. In short, a GPU has a finite amount of memory capacity. If I loaded a GPT-3 model with 175 Billion parameters using single-precision floating-point (FP32), it would need 700 GB of memory. And that’s just a static model consumption before pushing a single dataset example through. Quoting the paper “Efficient Large-Scale Language Model Training on GPU Clusters Using Megatron-LM,” “Training GPT-3 with 175 billion parameters would require approximately 288 years with a single V100 NVIDIA GPU.” With huge models, data scientists need to distribute the model across multiple GPUs.

Data scientists sometimes prefer pushing more data through a smaller model than using a large model and dealing with model distribution. Regardless of model size, data distribution is the most common method of distributed learning. With this method, the entire model is replicated across multiple GPUs, and the dataset is split up and distributed across the pool of GPUs. Native data distribution modules are available in PyTorch and TensorFlow.

With data distribution, the model is intact, but the dataset is split up. But to train the model coherently, the models must receive the result of each GPU’s training iteration. The models need to be trained in a certain lockstep; thus, the communication rate between the GPUs impacts the overall progression of the training job. The faster the GPUs communicate their learnings, the faster the model converges. It is why NVIDIA invests heavily in NVLINK and NVSwitch technology, and vSphere supports these technologies. Let’s look at the training process to understand the benefit of fast interconnects.

To make sense of the behavior of distributed training, we need to look at how deep learning training on a single GPU works first. The data set is processed in batches to train a neural network, and we pass the data across the neural network. This process is called the forward pass, and it computes the error. The error indicates how wrong the neural network is as it compares the predicted label to the annotation (the gold-truth label). The next step for the ML framework is to run the backpropagation (backward pass), which runs the error back through the network, producing gradients for each parameter in the neural network. These gradients tell us how to learn from our errors, and the optimizer updates the parameters. And the neural network is ready for the next batch. It’s up to the data scientist to find the correct batch size to utilize as much GPU memory as possible while leaving enough room for the activations of the backward pass. For more detail: Training vs. Inference – memory consumption by a neural network.”

Now let’s look at the most popular form of distributed training, distributed data parallelism with Multi-GPU architecture utilizing a ring-AllReduce to share gradients optimally. In this scenario, the framework copies a replica of the neural network model to each GPU and splits the dataset across the multiple GPUs. Each GPU runs the forward and backward pass to compute the gradient for the processed batch subset. Now comes the interesting part, the gradients have to be shared across the GPUs as if all the GPUs have processed the complete batch. The most commonly used operation that shares the gradients between GPUs is called Gradient Ring-AllReduce. PyTorch DistributedDataParallel, Horovod, and TensorFlow Mirrored Strategy use this operation to compute the mean of the local gradients on all the GPUs and then update the model with the averaged global gradient. The optimizer updates the models’ parameters and processes the next batch of the data set.

The memory consumption of a model gradient mostly depends on the model architecture. It’s challenging to provide an average size of a typical model gradient. Still, a reasonable indication of a gradient size can be inferred from the number of parameters. The more parameters per model to update, the more data must be sent. Bandwidth between GPUs impacts how long it will take to send all this data. As models get larger and larger, so does the gradient size required to update the parameters during training. Larger batches generate larger gradients to update the model parameters in each training step. Let’s use the Bert-Large model as an example. It has 340 million parameters. Gradients use FP32 regardless of the forward pass numerical precision (BFLOAT16, FP16, FP32). As a result, each parameter requires 4 bytes (32 bits) of memory. The total memory required to store the gradient for all the parameters would be 320 million x 4 bytes = 1.36GB of data per iteration per GPU. The Ring-All Reduce method manages that each GPU receives an identical copy of the averaged gradients at the end of the backward pass to ensure that the updates to model parameters are identical.

With Ring AllReduce, the GPUs are arranged in a logical ring, and each GPU receives data from its left neighbor and sends data to its right neighbor. The beauty of this ring structure is that each (N) GPU will send and receive values N-1. There are two steps involved, the scatter-reduce and the all-gather step. It would lengthen this article significantly if I covered the finer details of these steps, but what matters is that data is roughly transferred twice. So using the Ring AllReduce, each GPU training the Bert-Large must send and receive about 2.72GB of data per iteration. Using 25Gb Ethernet (providing 3.125 GB/s) 2.72GB *8 = 21.72Gb /25 Gbps = 870 milliseconds per iteration. This delay ramps up quite quickly if you run 30.000 iterations per epoch, and it takes 100 epochs to get the model accurate (convergence). That’s 725 hours or 30 days of latency. Bringing HPC Techniques to Deep Learning and Distributed data-parallel training using Pytorch on AWS are fantastic resources if you want to understand Ring AllReduce better.

Different configurations allow ML frameworks to consume multiple GPU devices. Multiple GPUs from a single ESXi host can be assigned to a VM for a single node-multi GPU setup. In a multi-node setup, multiple VMs are active and can consume GPUs from their local ESXi host. With different setups, there are different bandwidth bottlenecks.

Coming back to the data-load process, it makes sense to review the bandwidth within the ESXi host to recognize the added benefit of specialized GPU interconnects. Internal host bandwidth ranges from high bandwidth areas to low bandwidth areas. High bandwidth areas are located on the GPU itself, where GPU cores can access High Bandwidth Memory (HBM) between 2 TB/s or 3.35 TB/s, depending on the form factor of the H100. The GPU device connects to the system with a PCIe Gen 5 interconnect, offering 126 GB/s of bandwidth, allowing the GPU to access ESXi host memory to read the data set or write the results of the training job. And suppose the distributed training method uses a multi-node configuration. In that case, the PCIe bus connects to the NIC, and data, such as gradients, are sent across (hopefully) a 25 Gbps connection equal to 3 GB/sec.

More complex models require more floating point operations per second (FLOPS) per byte of data. Thus, the combination of GPU processor speed and data loading times introduces an upper bound of the algorithm’s performance. Infra-tech savvy data scientists compute the limitations of the GPU hardware in terms of algorithm performance and visually plot this in a Roofline Model.

Helping the data scientist understand which GPU models vSphere supports and how they can be connected to enable distributed training helps you build a successful ML platform. Selecting the correct setup and utilizing dedicated interconnects isolates this noisy neighbor, allowing the ESXi host to run complementary workloads. Let’s look at the different optimized interconnect technologies supported by vSphere for Multi-GPU distributed training.

NVIDIA GPUDirect RDMA

NVIDIA GPUDirect RDMA (Remote Direct Memory Access) improves the performance of Multi-Node distributed training and is a technology that optimizes the complete path between GPUs in separate ESXi hosts. It provides a direct peer-to-peer data path between the GPU memory directly to and from the Mellanox NIC. It decreases GPU-to-GPU communication latency speeding up the workload. It alleviates the overall overhead of this workload on the ESXi Host as it avoids unnecessary system memory copies (and CPU overhead) by copying data to and from GPU memory. With GPUDirect RDMA, distributed training can now write gradients directly to each GPU input buffer without having the systems copy the gradients to the system memory first before moving it onto the sending NIC or into the receiving GPU. The HPC OCTO team ran performance tests comparing the data path between no-GPUDirect RDMA vs. GPUDirect RDMA setups. This test used a GPU as a passthrough device. GPUDirect RDMA supports both passthrough GPU and vGPU in 7.0U2.

One essential requirement is that the Mellanox NIC and the NVIDIA GPU must share the same PCIe switch or PCIe root complex. A modern CPU, like the Intel Scalable Xeon, has multiple PCIe controllers. Each PCIe controller is considered to be a PCIe root complex. Each PCIe root complex provides a dedicated connection to the connected PCIe devices, allowing for simultaneous data transfers between multiple devices. However, finding documentation about the PCIe slot to specific PCIe root complex mapping is challenging with most systems. Most server documentation only exposes PCIe slots to CPU mapping. Forget about discovering which PCIe slot is connected to which of one of the four PCIe root complexes a dual-socket Intel Scalable Xeon 4th generation server has. An easy way out is to place both PCIe cards on a PCIe riser card. When a PCIe device is installed on a PCIe riser card, it generally connects to the PCIe root complex associated with the slot where the riser card is installed. Please note CPUs are not optimized to work as PCIe switches, and if you are designing your server platform to incorporate RDMA fabrics, I recommend looking for server hardware that includes PCIe switches. Most servers dedicated to machine learning or HPC workload have PCIe switchboards, such as the Dell DS8440.

vSphere 7.0 u2 supports Address Translation Service (ATS) with Intel CPUs. ATS, part of the PCIe standard, allows efficient addressing by bypassing the IO Memory Management Unit of the CPU. If a PCIe device needs to access ESXi host memory, it must request the CPU translate the device memory address into a physical one. With ATS, the PCIe device, with the help of a translation agent, can directly perform the translation itself, bypassing the CPU and improving performance.

Device groups allow the VI-admin or operator to easily assign a combination of NVIDIA GPU and Mellanox NICs to a VM. vSphere performs a topology detection and exposes which devices share the same PCIe root complex or PCIe Switch in the UI. The device group in the screenshots shows two groups. The group listed at the top is a collection of two A100s connected via NVLink. The device group listed at the bottom combines an A100 GPU, using a 40c vGPU profile (a complete assignment of the card) and a Mellanox ConnectX-6 NIC connected to the same Switch. I must admit that the automatically generated device group names can be a bit more polished.

Communication backends such as NCCL, MPI (v1.7.4), and Horovod support GPUDirect RDMA.

NVIDIA NVLink Bridge

NVLink is designed to offer a low-latency, high-speed interconnect between two adjacent GPU devices to improve GPU-to-GPU communications. NVLINK Bridge is a hardware interconnection plug that connects two PCIe GPUs. The photo shows two PCIe A100 GPUs connected by three NVlink bridges. Using an NVLink setup requires some planning ahead, as the server hardware should be able to allocate two double PCI slot cards directly above each other. It rules out almost every 2U server configuration.

For all peer-to-peer access, data flows across the NVLink connections. The beauty is that the CUDA API enables peer access if both GPUs can access each other over NVLINK, even if they don’t belong to the same PCIe domain managed by a single PCI root complex. The P100 introduces the first generation of NVlink, and the H100 has the latest generation incorporated in its design. Each generation increases its links per GPU and, subsequently, the total bandwidth between the GPUs.

NVLink Specifications2nd Gen3rd Gen4th Gen
Maximum Number of Links per GPU61218
NVLink bandwidth per GPU300 GB/s600 GB/s900 GB/s
Supported GPU ArchitecturesVolta GPUsAmpere GPUsHopper GPUs

The fourth generation offers up to 900 GB/s of bandwidth between GPUs, creating an interesting bandwidth landscape within the system. The PCIe connection is used when the dataset is loaded into GPU memory. In CUDA terminology, this is referred to as a host-to-device copy. Each GPU has its memory address space, so the data set flows to each GPU separately across its PCIe connection. The GPU initiates direct memory access for this process. When models need to synchronize, such as sharing or updating gradients, they use the NVLink connection. In addition to the bandwidth increase, latency is about 1/10th of the PCie connection (1.3 ms vs. 13 ms). An upcoming article covers DMA and memory-mapped I/O extensively.

But what about if you want to integrate four PCIe GPUs in a single ESXi host system? vSphere 7 and 8 support the number of GPUs but do not expect scalable linear performance when assigning all four GPUs to a single VM, as NVLink works per bridged card pair. Synchronization data of machine learning models between the pairs traverse across the PCIe bus, creating a congestion point. Going back to Ring-AllReduce, all the transfers happen synchronously. Thus the speed of the allreduce operation is limited by the connection with the lowest bandwidth between adjacent GPUs in the ring. For these configurations, it makes sense to look at HGX systems with 4 GPUs connected to NVLink integrated into the motherboard and using SXM-type GPUs or 8-GPU systems with an integrated NVSwitch.

NVSwitch

vSphere 8.0 Update 1 supports up to 8 vGPU devices connected via an NVSwitch fabric. An NVSwitch connects multiple NVLinks providing an all-to-all communication and single memory fabric. NVSwitch fabrics are available in NVIDIA HGX-type systems and use GPUs with the SXM interface. The Dell PowerEdge XE8545 (AMD) (4 x A100), XE9680 (8 x A100\H100) (Intel), and HPE Apollo 6500 Gen10 Plus (AMD) are such systems. If we open up an HGX machine, the first thing that sticks out is SXM from factor GPU. It moves away from the PCIe physical interface. The SXM socket handles power delivery, eliminating the need for external power cables, but more importantly, it results in a better (horizontal) mounting position, allowing for better cooling options. A H100 SXM5 also runs more cores (132 streaming multi-processors (SMs)) vs. H100 PCIe (113 SMs).

When the data arrives at the onboard GPU memory, after a host-to-device copy, communication remains between GPUs. All communication flows across the NVLinks and NVswitch fabrics, essentially keeping GPU-related traffic of the CPU interconnect (AMD Infinity fabric, Intel UPI ~40 GB/s theoretical bandwidth).

With the help of vSphere device groups, the vi-admin or operator can configure the virtual machines with various vGPU configurations. They can be assigned in groups of 2, 4, and 8. Suppose a device group selects a subset of GPU devices of the HGX system. In that case, vSphere isolates these GPUs and disables the NVlink connections to the other GPUs, offering complete isolation between the device groups.

No virtualization tax

One of the counterarguments I face when discussing these technologies with tech-savvy data scientists is the perception of overhead. Virtualization impacts performance. Why inject a virtualization layer if I can run it on bare metal? Purely focusing on performance, I can safely say this is a thing of the past. MLCommons (an open engineering consortium that aims to accelerate machine learning innovation and its impact on society) has published the MLPerf v3.0 results. The performance team ran MLPerf Inference v3.0 benchmarks on Dell XE8545 with 4x virtualized NVIDIA SXM A100-80GB and Dell R750xa with 2x virtualized NVIDIA H100-PCIE-80GB, both with only 16 vCPUs out of 128. The ESXi host runs the ML workload while providing ample room for other workloads.

For the full write-up and more results, please visit the VROOM! Performance Blog.

What is interesting is that NVIDIA released a GPU designed to accelerate inference workloads for generative AI applications. The H100 NVL for Large Language Model Deployment contains 188GB of memory and features a “transformer engine” that can deliver up to 12x faster inference performance for GPT-3 compared to the prior generation A100 at data center scale. It is interesting that NVIDIA now sells H100 directly connected with NVLinks as a single device. It promotes the NVLink as a first-class building block instead of an article that should be ordered alongside the devices.

With that in mind, the number of available devices is incredibly high. Each with its unique selling points. The following article overviews all the available and supported GPU devices.

Other articles in this series:

  • vSphere ML Accelerator Spectrum Deep Dive Series
  • vSphere ML Accelerator Spectrum Deep Dive – Fractional and Full GPUs
  • vSphere ML Accelerator Spectrum Deep Dive – Multi-GPU for Distributed Training
  • vSphere ML Accelerator Spectrum Deep Dive – GPU Device Differentiators
  • vSphere ML Accelerator Spectrum Deep Dive – NVIDIA AI Enterprise Suite
  • vSphere ML Accelerator Spectrum Deep Dive – ESXi Host BIOS, VM, and vCenter Settings
  • vSphere ML Accelerator Spectrum Deep Dive – Using Dynamic DirectPath IO (Passthrough) with VMs
  • vSphere ML Accelerator Spectrum Deep Dive – NVAIE Cloud License Service Setup

Filed Under: AI & ML Tagged With: GPU, Machine Learning

Deep Learning Technology Stack Overview for the vAdmin – Part 1

March 12, 2020 by frankdenneman

Introduction

We are amid the AI “gold rush.” More organizations are looking to incorporate any form of machine learning (ML) or deep learning in their services to enhance customer experience, drive efficiencies in their processes or improve quality of life (healthcare, transportation, smart cities).

Train Where Data is Generated

One of the key elements that drive on-premise ML focused infrastructure growth is the reality of data gravity. Mentioned in the article “Multi-GPU and Distributed Deep Learning,” deep learning (DL) gets better with data. Consequently, data sets used for ML and DL training purposes are growing at a tremendous rate. These vast data sets need to be processed. Data transit, hosting, and the necessary compute cycles impact the overall OPEX budget. Additionally, data protection regulations such as data residency, data sovereignty, and data locality impact where data can be stored outside the place it is created. As a result, a lot of forward-leaning organizations are repatriating their AI platforms to run ML and DL workloads close to the systems that generate the data.

And what better platform to run ML and DL workloads than vSphere? Machine learning comes with its own set of lingo, and different personas interacting with the machine learning stack. To be able to have a meaningful conversation with data scientists and ML engineers, you need to have a basic understanding of how each component interacts with each other. You don’t have to learn the ins and out of the different neural networks, but having an idea of what a particular component does help you understand how it might impact your service levels and your selection of components of the vSphere platform used for ML workloads.

To give an example, OpenCL and Vulkan are frameworks that allow for the execution of code on GPU (General Purpose GPU). Using this framework allows you to theoretically expose any GPUs to a machine learning framework such as Tensorflow or Pytorch. As it’s open-source, you can use it on all kinds of GPUs from different vendors. However, all popular actively-developed frameworks do not support OpenCL or Vulkan and only use the NVIDIA CUDA API framework, thus impacting your hardware selection for the vSphere host design. I created an overview of the different layers of the deep learning technology stack, attempting to make sense of the relationships between the components of each different layer.

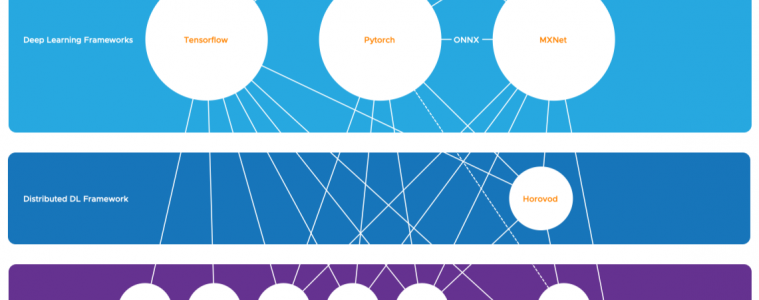

Deep Learning Technology Stack

Let’s use a bottom-up approach for reviewing the deep learning technology stack.

vSphere Constructs and Accelerators

Hardware over the last 20 years looked uniform, other than the vendor and some minor vendor-specific functionality; the devices appeared relatively similar to a guest OS. Most code can run on an AMD as well as an Intel without changing. Hardware competed on scale and speed, not on different ways how it can interact with software. Today’s acceleration devices are very diverse and expose their explicit architecture to the application. The hardware specifics determine the code and algorithm used in the application. And therefore, we need to expose these devices to the application in its most raw and unique form. As a result, the overview primarily covers acceleration devices such as GPUs and FPGAs.

However, recently Rice University released a new research paper called: “SLIDE: In Defense of Smart Algorithms over Hardware Acceleration for Large-Scale Deep Learning Systems“. They are demonstrating that by using a fundamentally different approach, it is possible to accelerate deep learning without using hardware accelerators like GPUs.

Our evaluations on industry-scale recommendation datasets, with large fully connected architectures, show that training with SLIDE on a 44 core CPU is more than 3.5 times (1-hour vs. 3.5 hours) faster than the same network trained using TF on Tesla V100 at any given accuracy level. On the same CPU hardware, SLIDE is over 10x faster than TF

I assume the authors meant a dual-socket system with two 22-cores Xeon CPUs, but an exciting development that certainly needs to be closely followed. For now, let’s concentrate on the components used by the majority of the deep-learning community.

vSphere can expose the accelerator devices via two constructs right now, DirectPath I/O (Passthrough) and NVIDIA vGPU. In 2020 two additional constructs will be available; Dynamic DirectPath I/O (information will follow soon) and Bitfusion. Bitfusion pools and shares accelerators across VMs inside the cluster. It provides virtual remote attached GPUs that can be shared between VMs fully or fractionally. Bitfusion can even assign multiple GPUs to a single VM to support any form of distributed deep learning strategy.

DirectPath I/O

DirectPath I/O, often called Passthrough, provides similar functionality as bare-metal GPU. DirectPath I/O is used for maximum hardware device performance inside the VM and to use native vendor driver and app stack support in the guest OS and the application. Perfect for running specialized software libraries provided by the CUDA stack, which is covered in a later paragraph. DirectPath I/O allows for maximum performance because the I/O mapped from the application and guest OS directly to the hardware device; the VMkernel (Hypervisor) is not involved.

A complete device is assigned to a single VM and cannot be shared with other active VMs. This prohibits fractional use of the device (i.e., assigning half of the device resources to a VM). DirectPath I/O allows assigning multiple GPUs to a VM.

When a DirectPath I/O device is assigned to a virtual machine, it uses the physical location of the device for the assignment, i.e., Host:Bus: Device-Physical-Function. (The article “Machine Learning Workload and GPGPU NUMA Node Locality” describes locality assignment in detail). Due to this, DirectPath I/O is not compatible with certain core virtualization features, such as vMotion (and thus DRS).

Design Impact

Currently, vSphere does not support the AMD Radeon Server Accelerators for Deep learning (Radeon Instinct). vSphere supports only NVIDIA GPUs at the moment. From vSphere 6.7 update 1, FPGAs can also be directly exposed to the guest OS by using DirectPath I/O. At the time of writing this article, vSphere 6.7 update 1 supports the Intel Arria 10 GX FPGA. More details on the vSphere blog.

NVIDIA vGPU

NVIDIA virtual GPU (vGPU) provides advanced GPU virtualization functionality that enables the sharing of GPU devices across VMs. An NVIDIA GPU can be logically partitioned (fractional GPU) to multiple virtual GPUs. A VM can use multiple vGPUs that are located in the same host. Both the hypervisor and the VM need to run NVIDIA software to provide fractional, full, and multiple vGPU functionalities.

Bitfusion

In 2019, VMware acquired Bitfusion, and I’m looking forward to having this functionality available to our customers. Bitfusion FlexDirect software allows for pooling GPU resources and providing a dynamic remote attach service. That means that workload can run on vSphere hosts that do not have GPU hardware installed. The beauty of this solution is that it does not require any changes to the application. It uses native CUDA (see acceleration libraries paragraph) to intercept the application calls, the FlexDirect software sends it to the FlexDirect server across the network. The Flexdirect server has a DirectPath I/O connection to all the GPUs in that host and manages the placement and scheduling of the workloads.

This model corresponds heavily to the early days of virtualization. We used to have 1000’s x86 servers in the data center, each having an average utilization of less than 10% while costing a lot of money. We consolidated compute resources and managed the workload in such a manner than peak utilization did not overlap. With the rise of general-purpose computing on GPU, we see the same patterns. The GPUs are not cheap, sometimes the cost of a GPU server is an order of magnitude more expensive than a “traditional” server. However, when we look at the utilization, we see an average usage of 5 to 20%.

Deep Learning Development Cycle
With deep-learning, you cannot just pump some data into a deep-learning model and expect a result. The data scientist has to gather training data, asses the data quality. The next step is to choose an algorithm and a framework. Often the data is not formatted correctly for the used model. The data set needs to be improved; typically, data scientists need to deal with outliers and extreme values, missing or inaccurate data. Data for supervised learning needs to be labeled, and the data set needs to be split up into training data sets and evaluation data sets. Now the deep-learning can begin, and the GPU is fed the data. The deep learning framework executes the model. After a single epoch, the data scientist reviews the effectiveness of the model and possibly adjust the model to improve prediction. The model is trained again to verify if the adjustments are correct. Once the model behaves appropriately, it deployed to production where it can run inference tasks that generate predictions based on new data. Each step consuming a lot of time, however only two moments (marked in red) utilize the expensive GPU hardware. Creating the problem, interestingly called “dark silicon”.

It doesn’t make sense to keep those resource isolated and assigned to a VM that can only be used by a specific data scientist. By introducing remote virtualization, a GPU can be shared between many different virtual machines. A Bitfusion server can contain multiple GPUs, and many Bitfusion servers can be active on the network. Abstracting the hardware and allow for remote execution of API calls, creates a solution that is easily scaled out. Orchestrating workload placement ensures that a pool of GPUs can be made available to the data scientist when the model is ready for training.

During the Tech Field Day, Mazhar Memom (CTO Bitfusion) covered the Bitfusion architecture, showing the use of CUDA libraries by the application to interact with the GPU device. In Bitfusion’s case, it is sending these remote API calls to a server that controls the hardware. But this brings us to the statement made earlier in the article. We have arrived at a time in which the software depends heavily on abstraction layers. In the AI space, it is no different. A deep learning model is going to use a framework that uses a set of libraries that are provided by the hardware vendor. This model allows the application developer to quickly (and correctly) to consume the hardware functionality to drive application performance. The defacto toolkit for the deep learning ecosystem is NVIDIA’s Compute Unified Device Architecture (CUDA). The next article covers the subsequent layers in the DL framework stack in more depth.

Filed Under: AI & ML Tagged With: Machine Learning

Multi-GPU and Distributed Deep Learning

February 19, 2020 by frankdenneman

More enterprises are incorporating machine learning (ML) into their operations, products, and services. Similar to other workloads, a hybrid-cloud model strategy is used for ML development and deployment. A common strategy is using the excellent toolset and training data offered by public cloud ML services for generic ML capabilities. These ML activities typically improve an organization’s quality of service and increase in productivity. But the real differentiation lies within using the organization’s unique data and know-how to create what’s called differentiated machine learning. The data used is primarily generated by own processes or through interaction with its customers. As a result, specific rules and regulations come into play when handling and storing that data. Another strong aspect of determining where to deploy ML activities is data gravity. Placing compute close to where the data is generated provides a consistent (often high-performing) service. As a result, many organizations invest in the infrastructure needed to deploy ML and deep learning (DL) solutions.

Deep Learning

Deep learning is a subset of the more extensive collection of machine learning techniques. The critical difference between ML and DL is the way the data is presented to the solution. ML uses mathematical techniques and data to build predictive models. It uses labeled (structured) data to train the model, and once the model is trained accurately enough, the model keeps on learning by feeding new data. Deep learning does not necessarily need structured or labeled data to create an accurate model to provide a predictive answer. It uses larger neural networks (layers of algorithms, imitating the brain’s neural network), and it needs to be fed vast amounts of data to provide an accurate prediction.

Interestingly, at one point, ML experiences a performance plateau regardless of the amount of incoming new data, while deep learning keeps on improving. For more information, about this phenomenon review the notes from Andrew Ng Coursera Deep Learning course or watch his 5-minute clip on youtube: How Scale is Enabling Deep Learning.

In essence, the magic of deep-learning is that it gets better with data, and thus, how do we create an infrastructure that is capable of feeding, transporting, and processing these vast amounts of data, while still being able to run non-ML/DL workload?

Parallelism

The best way of dealing with massive amounts of data is to process it in a parallel way. And that’s where general-purpose computing on GPU (GPGPU) comes into play. A simple TensorFlow test compared the performance between a dual AMD Opteron 6168 (2×12 cores) vs. a system with a (consumer-grade NVIDIA Geforce 1070. The AMD system recorded 440 examples per second, while the Geforce processed 6500 examples per second. There are many performance tests available, but this showed the power of a consumer-grade GPU versus a data center grade CPU system.

Today data center focused GPUs have more than 5000 cores all optimized to operate in parallel. These cores have access to 32 GB of high bandwidth memory (HBM2) with speeds up to 900 GB/s (theoretical bandwidth). According to the paper “Analysis of Relationship between SIMD-Processing Features Used in NVIDIA GPUs and NEC SX-Aurora TSUBASA Vector Processors” by Ilya.V. Afanasyev et al. the achievable bandwidth on the tested NVIDIA Volta V100 was 809 GB/s. Getting all the data loaded in memory with consistent performance is one element that impacts virtual machine design. See “Machine Learning Workload and GPGPU NUMA Node Locality” for more information.

Although the improvement of processing speed is enormous, up to 10x over a CPU according to this performance study, sometimes this speed-up is not enough. After processing all the training examples in a dataset (called an epoch), a data scientist might make some adjustments as well and start another epoch to improve the prediction model.

It’s common to run multiple epochs before getting an adequate trained model (and in the process pushing lots of data through the system). Reducing training time, allows the organization to deploy the trained model faster, and start benefiting from their ML and DL initiatives. A “simple” way to reduce training time is to use multiple GPU devices to increase parallelism.

Distributed Deep Learning Strategies

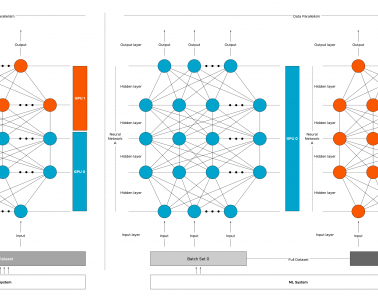

How do you scale out your training model across the multiple GPUs in your system? You add another layer of parallelism on top of GPUs. Parallelism is a common strategy is distributed deep learning. There are two popular methods of parallelizing DL models: model parallelism and data parallelism.

Model parallelism
With model parallelism, a single model (Neural Network A) is split and distributed across different GPUs (GPU0 and GPU1). The same (full) training data will be processed by the different GPUs depending on which layer is active. Models with a very large number of parameters, that are too big to fit inside a single device’s memory, benefit from this type of strategy.

Neural networks have data dependency. The output of the previous layer is the input of the next layer. Asynchronous processing of data can be used to reduce training time, however, model parallelism is more about having the ability to run large models.

Maybe model sequentiality would be a better name for this mode as it primarily is using devices in sequential order. More than often a device is idling, waiting to receive the data from another device. Once the model part is trained on one device, it has to synchronize the outcome with the next layer possibly handled by another device.

This synchronization is interesting when designing your ML platform as specific data to help run the model has to traverse the interconnect either between devices within the ESXi system or between VMs (or containers) running on the platform. More about this in a later paragraph.

Data parallelism
Data parallelism is the most common strategy deployed. As covered in the previous article: “Machine Learning Workload and GPGPU NUMA node locality” it is common to split up the entire training dataset into batches (batch 0 and batch1). With data parallelism, these batches are sent to the multiple GPUs (GPU 0 and GPU1). Each GPU will load a full replica of the model (Neural Network A) and run their batch of training examples through the model.

The models running on the GPUs must communicate with each other to share the results. Communication timing and patterns between the GPUs depend on the DL model ( Convolutional Neural Networks (CNN) or Recurrent Neural Networks (RNN)) and on the framework used (TensorFlow, Pytorch, MXNet).

Currently, there are a few projects active that are exploring the possibility of hybrid parallelization. This strategy uses both model and data parallelization strategies to minimize end-to-end training time.

Parallelism introduces communication between GPUs. Understanding the data-flow is essential to build a system that can provide consistent high-performance while ensuring the DL workloads are isolated enough and do not impact other workloads that are using the system. Various distributions of GPU resources are possible, such as a cluster of single GPU systems or multi-GPUs hosts. The next article focusses only on a single node with a multi-GPU configuration, to highlight the different in-system (on-node) interconnects

On-Node Interconnect

vSphere allows for different multi-GPU configurations. A VM can be equipped with multiple GPU configured as a passthrough device, or configured with vGPUs with the help of NVIDIA drivers, or by using a Bitfusion solution. Details about the different solutions will be covered in a future article. But regardless of the chosen configuration, the application will be able to use multiple GPUs in a single VM.

When deploying deep learning models across multiple GPUs in a single VM, the ESXi host PCIe bus becomes an inter-GPU network that is used for loading the data from system memory into the device memory. Once the model is active, the PCIe bus is used for GPU to GPU communication for synchronization between models or communication between layers.

If two PCIe devices communicate with each other, then the CPU is involved. Data coming from the source device is stored in system memory before transferring it to the destination device. The new Skylake architecture with it’s updated IIO structure, and additional mesh stops improved the CPU to PCIe communication over the previous ring-based architecture featured on the Xeon v1 through v4. (Each mesh stop has a dedicated cache and traffic controller).

CPU to GPU to CPU communication within a single NUMA node (Skylake Architecture)

For this purpose, NVIDIA introduced GPUDirect in CUDA 4.0, allowing direct memory access between two devices. However, this requires a full topology view of the system, and this is something currently vSphere is not exposing. As such, no direct PCI to PCI communication is available (yet).

Discovering this seems like this lack of topology view is an enormous bottleneck, but this doesn’t necessarily mean an application performance slowdown. Modern frameworks optimize their GPU code to minimize communication. As a result, communication between devices is just a portion of total time. Depending on the framework used and the parallelism strategy, the performance can still be close to the bare-metal performance.

NVIDIA NVLink

In 2016, NVIDIA introduced the NVLink interconnect, a high-speed mesh network that allows GPUs to communicate directly with each other. NVLink is designed to replace the inter GPU-GPU communication across the PCIe lanes, and as a result, NVLINK uses a separate interconnect. A new custom form factor SXM2 (supported by vSphere) allows the GPU to interface with the NVIDIA High-Speed Signalling interconnect (NVHS). The NVHS allows the GPU to communicate with the other GPUs as well as direct system memory access. Currently, NVLink 2.0 (available on NVIDIA Tesla v100 GPUs) provides an aggregate maximum theoretical bidirectional bandwidth of 300 GBps. (AMD does not have any equivalent to NVlink)

NVIDIA V100 SXM2

Design Decisions

Data movement within an ML system (VM) can be substantial. Fetching the data from storage, storing it into system memory before dispatching it to multiple vGPUs can produce a significant load on the platform. Depending on the neural network, framework, and parallelism strategy, communication between GPUs can add additional load to the system. It’s key to understand this behavior before considering retrofitting your current platform with GPU devices or while designing your new vSphere clusters.

Depending on the purpose of the platform it might be interesting to research the value of having a separate interconnect mesh for ML/DL workload. It allows for incredible isolation that will enable you to run other workloads on the ESXi host as well. Couple this the ability to share multiple GPUs with the Bitfusion solution, and you can create a platform that provides consistent high-performance for ML workload to numerous data scientists.

Filed Under: AI & ML Tagged With: Machine Learning

Machine Learning Workload and GPGPU NUMA Node Locality

January 30, 2020 by frankdenneman

In the previous article “PCIe Device NUMA Node Locality” I covered the physical connection between the processor and the PCIe device briefly touched upon machine learning workloads with regards to PCIe NUMA locality. This article zooms in on why it is important to consider PCIe NUMA locality.

General-Purpose Computing on Graphics Processing Units

New compute-intensive workloads take advantage of the new programming model called general-purpose computing on GPU (GPGPU). With GPGPU, the many cores integrated on modern GPUs are used to offload a vast number of (parallel) compute threads from the CPU. By adding another computational device with different characteristics, a heterogeneous compute architecture is born. GPUs are optimized for streaming sequential (or easily predictable) access patterns, while CPUs are designed for general access patterns and concurrency of threads. Combined, they form a GPGPU pipeline, that is exceptionally well-suited to analyze data. The vSphere platform is well-suited to create GPGPU pipelines and optimizations are provided to VMs, such as DirectPath I/O Access (also known as Passthrough). Passthrough allows the application to interface with the accelerator device directly; however, data must be transferred from disk/network through the system (RAM) to the GPU. And controlling the data transfer is of interest to the overall performance of the platform for both GPGPU workload and non-GPGPU workload.

A very popular GPGPU workload is Machine Learning (ML). Many ML workloads process gigabytes of data, sometimes even terabytes, this data flows from the storage device up to the PCIe device. Finetuning the configuration and placement of the virtual machine running the ML workload can benefit the data-scientist and other consumers of the platform. Not every ML workload is latency-sensitive, but most data scientists prefer to get the training done as quickly as possible. This allows them to perform more training iterations to fine-tune the model (also known as the neural network). Due to the movement of data through the system, a ML workload can quickly become the noisiest neighbor you ever saw in your system. But with the right guard-rails in place, data-scientists take advantage of running their workload on a consistent performing platform, while the rest of the organization can consume resources from this platform as well.

Machine Learning Concepts

Oversimplified ML is “using data to answer questions.” With traditional programming models, you create “rules” by using the programming language and apply these rules to the input to get output (results) (output). With ML training, you provide input and the output to train the program to create rules. This creates a predictive model that can be used to analyze previously unseen data to provide accurate answers. The key component of the entire ML process is data. This data is stored on a storage device and fetched to be used as input for the model to be trained on, or to use the trained model to provide results. Training a machine learning model is primarily done by a neural network of nodes that are executed by thousands of cores on GPUs. The nature of the cores (SIMT – Single Instruction, Multiple Data) allows for extremely fast parallel processing, ideal for this sort of workload, hence you want to use GPUs for this task and not the serial-workload optimized CPUs. The heavy lifting of the compute part is done by the GPU, but the challenge is getting the data to the costly GPU cores as fast and consistent as possible. If you do not keep the GPU cores fed with all the data it needs, then a large part of the GPU cores sit idle until new data shows up. And this is the challenge to overcome, handling large quantities of training data that flows from storage, through the host memory, into the VM memory before flowing into the memory of the GPU. High-speed storage systems with fast caching and fast paths between the storage, CPU, server memory and PCIe device are necessary.

Anatomy of an ML Training Workload

The collection of training examples is called a dataset, and the golden rule is, the more data you can use during the training, the better the predictive model becomes. That means that the data scientist will unleash copious amounts of data on the system, data so large that it cannot fit inside the memory device of the GPU. Perhaps not even the memory assigned to the virtual machine, as a result, the data is stored on disk and is retrieved in batches.

The data scientist typically finetunes the size of the batch set, finetuning a batch set size is considered an art form in the world of ML. You, the virtual admin, slowly graduating into an ML infrastructure engineer (managing and help to design the ML platform), can help inform the data scientist by sizing the virtual machine correctly. Look at CPU consumption and determine the correct number of vCPUs necessary to push the workload. Once the GPU receives a batch, the workload is contained within the GPU. Rightsizing the VM can help to improve performance further as the VM might fit a single NUMA node.

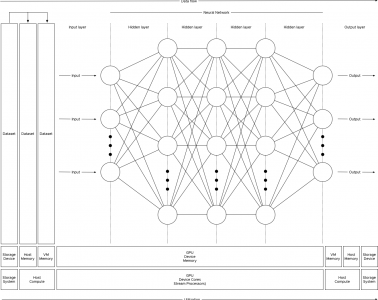

To understand the dataflow of an ML workload through the system, let’s get familiar with some neural network terminology. Most of the ML workload use the Compute Unified Device Architecture (CUDA) for GPU programming, and when using a batch of the training data, the CUDA program takes the following steps:
